Home > Sony Playstation parts > Sony PS3 Console

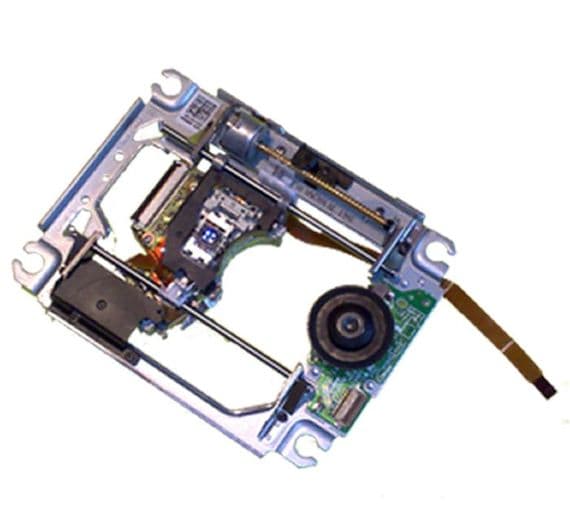

PS3 Laser and mechanism (KEM-400AAA)
Roll on to zoom in
Click an image to enlarge

PS3 Laser and mechanism (KEM-400AAA)


Customer Reviews
Write an online review and share your thoughts with other shoppers!

Reviewer: Mark King from Bradford   5 Stars
fantastic service. Not only did I get advice on the part I needed I then got technical assistance. I ordered a PS3 laser which worked fine but I had trouble with the transport not working. I was called back on my mobile and assisted until the problem was found. The problem was not due to the part sent but my re-assembling. This is the type od service I thought no longer existed. I thoroughly recommend them. Mark

Reviewer: Paul from S Wales   5 Stars
Dead bluray drive on PS3, and all the "tricks" didn't work so new laser mech was final option. Having seen glowing reviews of ConsoleParts4U I ordered and it arrived next day. When the updated drive still didn't work, several calls to (a very patient) tech proved invaluable - issue was down to my amateurish reassembly. Thoroughly recommended!

Reviewer: Tom from Cambridge   5 Stars
Excellent service. Ordered Laser mechanism instead of complete drive after phone call. Item received and fitted - works perfectly. Ordered one day and received the next. Thoroughly recommend this company

Reviewer: Kim from Sweden   5 Stars
Can really recommend this online store. Quick delivery. 6 days to Sweden. And besides, good prices and a friendly support. who helped me when I ran into some problems.

Reviewer: Stewart Russell from Manchester   5 Stars
Had a problem with my PS3 so contacted ConsoleParts4U to get some help. I gave them a quick description of the fault and they advised me to change out the laser mechanism. The new assembly arrived within 24 hours of ordering but unfortunately proved to be faulty. A quick email to the company sorted out a replacement unit which again arrived really quickly and worked fine. Great advice and great customer service 5/5 !!

Reviewer: Michael from Cheshire   4 Stars
Excellent service, arrived next day even with just 1st class postage. Only 4 stars because I was sent the wrong item initially, however the correct one arrived a day later with a prepaid envelope to return the wrong one. Good communication by email. Recommended.


New laser and mechanism the ideal replacement for a constantly used, worn out laser unit.

  • New replacement BluRay laser and mechanism for the Sony Playstation PS3 console.
  • A direct replacement unit for consoles fitted with the single lens KEM-400AAA laser and mechanism unit.
  • Has you console stopped reading disks or does not recognise the disc inserted into the drive. The your laser may have blown and needs replacing.
  • In our experience the average lifespan of the original PS3 laser in well used consoles, is only 18 months
  • This unit replaces all the main working parts of the laser unit, the laser, CD spin motor and laser worm drive motor.
  • Installation requires a Phillips and T-10 (M-Tork) screwdrivers.
  • Fast Dispatch - On order payments received before 4:00pm on weekdays, item will be dispatched the same day.
  • 3 month warranty included.
ps3 consoles | playstation 3 console | playstation repair

Model List:
PS3 Model # PS3 Release Date PS3 Type PS3 HDDLaser Lens Model Laser Deck Model
CECHA 8/2006 - 8/2007 Fat Model 60GB KES-400A KEM-400AAA
CECHB 8/2006 - 4/2007 Fat Model 20GB KES-400A KES-400AAA
CECHC 8/2006 - 8/2007 Fat Model 60GB CHECK CHECK
CECHE 7-AugFat Model 80GB KES-400A KEM-400AAA
CECHH 7-OctFat Model 40GB KES-410A KEM-410ACA
CECHJ 8-AugFat Model 40GB KES-410A KEM-410ACA
CECHK 8-AugFat Model 80GB KES-410A KEM-410ACA
CECHL 8-AugFat Model 80GB KES-410A KEM-410ACA
CECHM 8-AugFat Model 80GB KES-410A KEM-410ACA
CECHP 8-OctFat Model 160GB KES-410A KEM-410ACA
CECHQ 9-AprFat Model 160GB KES-410A KEM-410ACA
